2024 Diamond C 7X24 20K Tilt Deck Equipment Trailer w/Spare Mount

2024 Diamond C 7X24 20K Tilt Deck Equipment Trailer for Sale

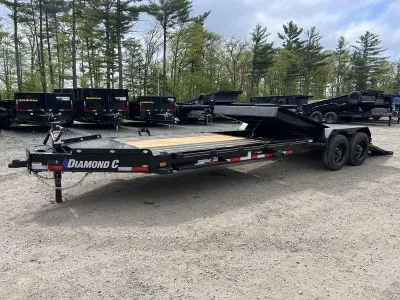

Hauling heavy equipment gets simpler with this 2024 Diamond C 7X24 20K tilt deck equipment trailer, a new, engineered-beam hauler rated at a 20,000 lb GVWR with a 15,370 lb payload. The hydraulic-dampened tilt deck removes the need for separate ramps, letting you load skid steers, tractors, and machinery at a low, drive-on angle.

Tilt Deck Loading Done Right

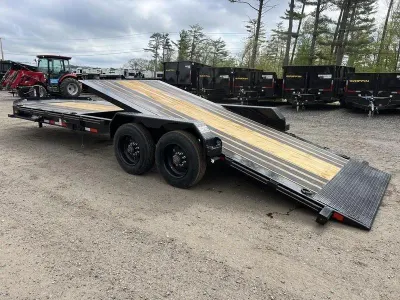

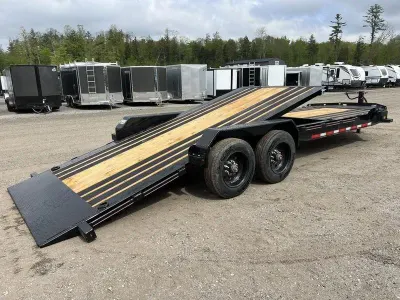

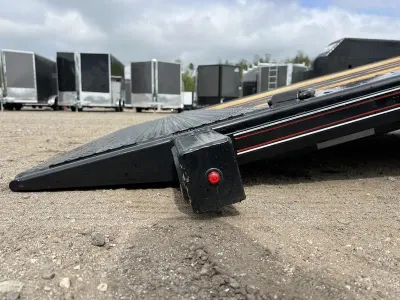

The trailer combines an 8′ stationary deck with a 16′ hydraulic dampened tilt section, so the bed lowers smoothly to the ground and returns under control rather than slamming. That means safer, one-person loading of low-clearance equipment. The engineered beam frame with an 8″x10 lb I-beam tongue and 3″ I-beam crossmembers on 16″ centres gives it the backbone for repeated heavy cycles, while dual 10,000 lb torsion axles with electric drum brakes handle the stopping.

Specifications

• 2024 Diamond C, model HDT21024X82, new, black

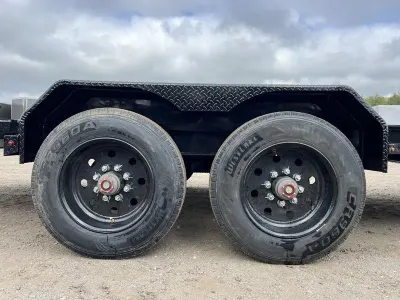

• Two 10,000 lb torsion straight axles with electric drum brakes
• Engineered beam frame, 8″x10 lb I-beam tongue
• 3″ I-beam crossmembers on 16″ centres
• 8′ stationary deck plus 16′ hydraulic dampened tilt deck

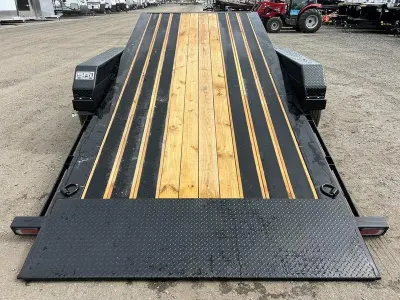

• 2″ pressure-treated decking with Blackwood outer decking option

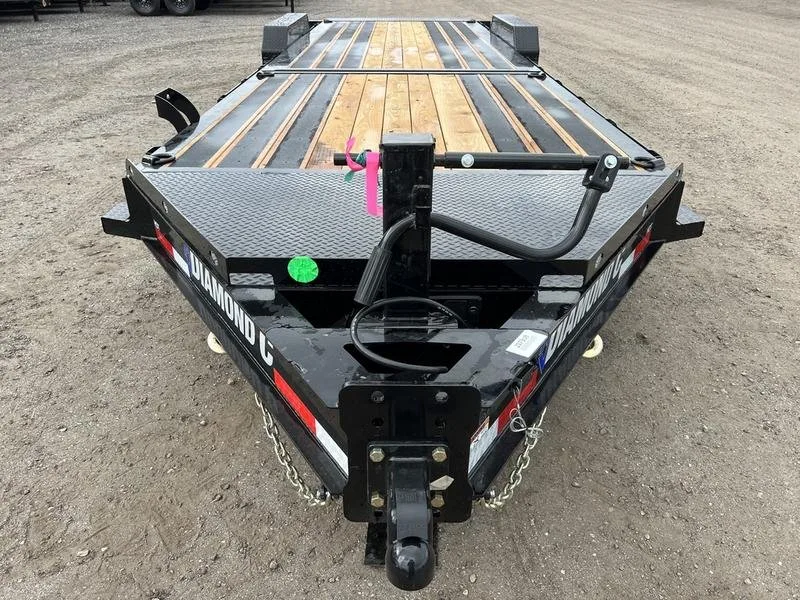

• 2-5/16″ 21,000 lb Demco EZ-Latch adjustable coupler

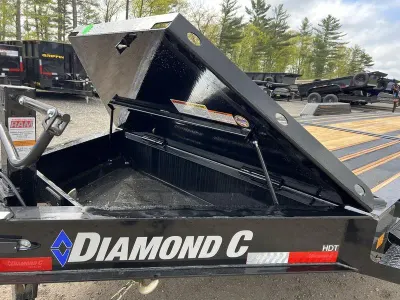

• 12,000 lb drop-leg jack, HD V-tongue lid storage tool box

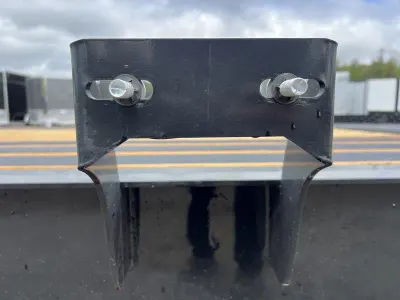

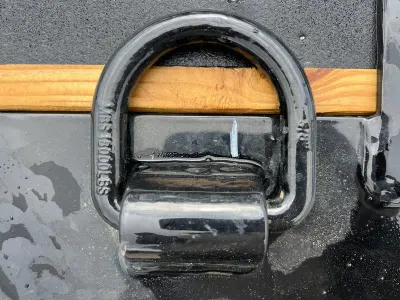

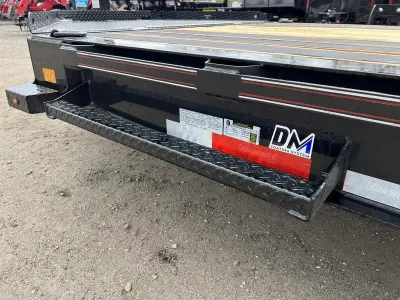

• Six D-rings, 36″ side step, 2″x3/8″ rub rail with stake pockets

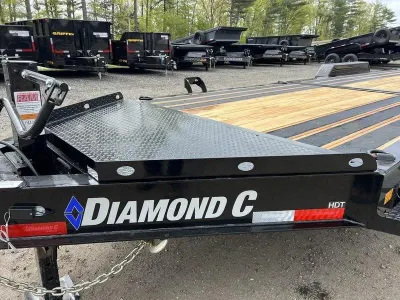

• Radial tires, LED lighting, 14ga teardrop diamond plate fenders
• GVWR 20,000 lbs, empty 4,630 lbs, payload 15,370 lbs

When choosing a tilt trailer, confirm your equipment’s ground clearance suits the tilt angle and that your load stays within the 15,370 lb payload. The adjustable coupler lets you dial in level towing, and the six D-rings provide solid tie-down points. On delivery, verify brake function and hydraulic cushion operation.

You can inspect this trailer in person, and we ship Canada-wide from Winnipeg, Manitoba. Contact us today to request a quote.
